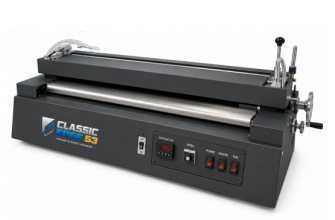

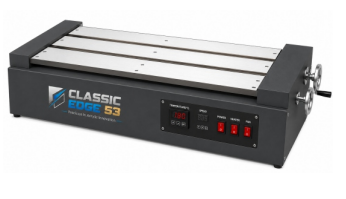

Acrylic Multi-Roasting Hot Bending Machine
This bending machine is widely used for complex, multi-angle bending in workpiece processing, combining high efficiency with simple operation. It features simultaneous heating to form three corners at once (customizable up to four), making it particularly suited for manufacturing acrylic gifts, signage, and various box or light-box multi-angle products. Additionally, the machine can be converted into an upper and lower heating configuration for bending thick plates, making it an indispensable solution for processing acrylic, organic boards, PC, PVC, PP, and other plastic materials.
Multi-Angle Bending
Simultaneous Corner Heating
Dual Heating Configuration
Wide Material Compatibility
Model Specifications
| Model | Main Power Input | Power | Bending Limit | Cooling Systems | Dimensions | Net weight | Resources |
|---|---|---|---|---|---|---|---|
| SD-1200F4 | 380V, 50-60Hz | 4800W Adjustable | Length: Unlimited Width: 120 cm | Water circulation cooling system | 170 × 125 × 110 cm | 180 kg | - |
| SD-1500F4 | 380V, 50-60Hz | 6000W Adjustable | Length: Unlimited Width: 150 cm | Water circulation cooling system | 220 × 125 × 110 cm | 250 kg | - |
| SD-1800F4 | 380V, 50-60Hz | 7200W Adjustable | Length: Unlimited Width: 180 cm | Water circulation chilling / Air-Cooled | 260 × 125 × 110 cm | 300 kg | - |
