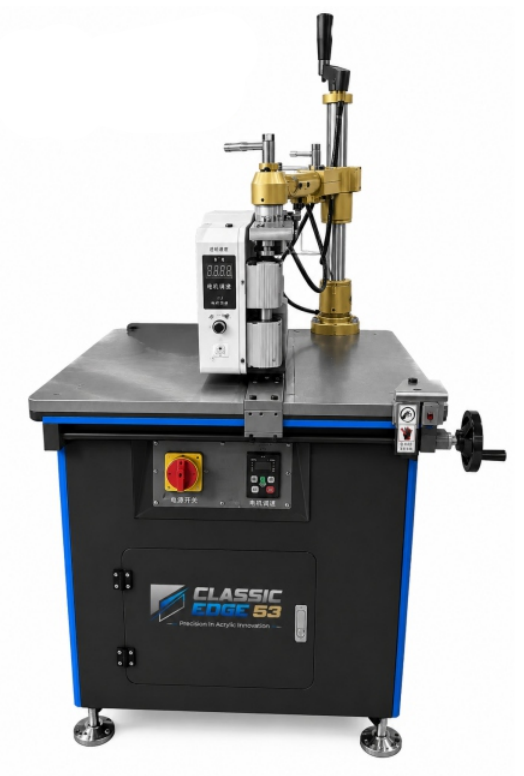

Acrylic Multi-function Trimming Machine
Dedicated edge trimming machine for Acrylic, PS, MS, and PMMA.
Machinable Materials: Acrylic, MS, PS and other materials.
Equipped with 24000 RPM high-speed spindle motor, well-known brand automatic feeder device.
New performance upgrade, adding hand cranking synchronous positioning design. Chamfering, trimming, R Angle, slotting, etc., to achieve a multi-purpose machine.
The working table surface is made of smooth and flat special materials to avoid scratches on the surface of the workpiece. The workpiece can be continuously feed and processed without waiting.
Processing Speed: Variable frequency speed regulation, the processing speed can be adjusted arbitrarily (up to 1 minute /10 meters).
The cutting depth is adjustable, the processing angle can be directly adjusted by the motor. And it is equipped with a water-cooling machine for chilling.
Technical Specifications
Power Supply380V (50hz/60hz)
Spindle Power>= 3.2 KW
Feeder Power0.75 KW
Working ModeStepless speed control automatic feeding
Main Axle rotation speedVariable frequency speed regulation / up to 24000 RPM
Depth of cutAdjustable
Machining Angle0° - 45° adjustable
Working heightAdjustable - according to tool specifications
Processing rangeLength >= 70mm, width unlimited
Tool stand size1mm - 12.7mm
Processing PositioningHand rail, synchronous adjustable
Working Table Dimensions900 mm x 750mm x 20mm
Overall Dimensions1000mm x 850mm x 1550mm
Machine Weight350 Kg
